Thinking about charging your EV at home? One overlooked wiring detail could decide whether your installation takes a single day or triggers costly panel upgrades and permit delays down the line.
Key Takeaways
- Before any installation starts, Ontario requires a notification of work filed with the Electrical Safety Authority, which functions as the required permit for home EV charger projects
- Level 1 chargers plug into a standard 120V outlet and charge slowly overnight, while Level 2 chargers need a dedicated 240V circuit and charge much faster
- A home assessment checks panel capacity, wiring distance and the proposed charger location before any work begins, a step worth understanding fully before budgeting for the project
- Panel upgrades or rewiring may be needed if an older electrical system cannot safely support a Level 2 charger
- Crown Electric Ltd offers EV charger installation estimates for Etobicoke homeowners by phone
Charging an electric vehicle at home sounds simple: plug in, wait, drive off the next morning with a full battery. Getting to that point safely takes some planning around equipment choices, electrical capacity and Ontario’s permit rules. Etobicoke homeowners who map out these steps before calling an electrician tend to avoid surprises on both the timeline and the invoice.
What Etobicoke Homeowners Must Confirm First
Before picking out a charger or booking an installation date, a few basics need confirming. The home’s electrical panel capacity, the distance between that panel and the parking spot, and the charger’s intended location all shape what the project will involve and what it will cost. Skipping this step is how homeowners end up with a charger that cannot be installed where they planned, or a quote that grows once an electrician spots a panel that cannot handle the extra load.
A proper assessment also confirms whether the household needs a simple dedicated circuit or something more involved, like a panel upgrade. Crown Electric Ltd’s EV charger installation service in Etobicoke starts with exactly this kind of walkthrough, giving homeowners a clear picture of scope before any wiring begins. Getting this groundwork right early tends to save both money and frustration later in the process.
It also pays to think about the vehicle itself, and any future vehicle, at this stage. A household planning to add a second EV down the road may want wiring and panel capacity that account for that from the start, rather than repeating assessment and installation work twice.

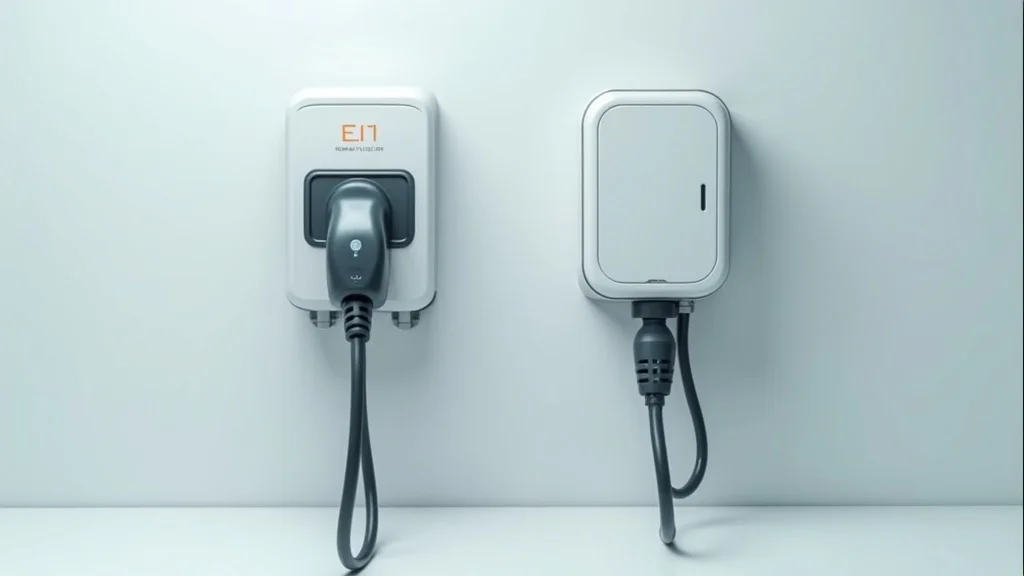

Level 1 vs Level 2: Picking Your Charger
Choosing between a Level 1 and Level 2 charger is one of the first real decisions in this process, and it shapes almost everything downstream, from wiring to cost. Level 1 chargers plug into a standard 120V household outlet, which means minimal electrical work, but charging is slow and best suited to drivers who cover modest daily distances. Level 2 chargers run on a dedicated 240V circuit, charging considerably faster, though they generally call for more electrical work to install properly.
Neither option suits every household equally well. A Level 1 setup can work fine for a plug-in hybrid or a driver who rarely exceeds a short commute, since the vehicle has plenty of overnight hours to recharge fully. A full battery-electric vehicle driven daily over longer distances usually benefits far more from the speed a Level 2 circuit provides, especially on days with multiple errands or a late-evening return home.
Matching the Charger to Your Driving Habits
The right charger depends on driving habits, vehicle battery size and how quickly a full charge is needed, rather than simply picking whichever unit looks newest or most feature-rich. A commuter with a short, predictable route and access to charge every night may never need Level 2 speed. A household with a larger battery EV, irregular schedules or multiple drivers sharing one vehicle will likely find Level 1 charging too slow to keep up.
Smart chargers add another consideration, since many offer app-based scheduling, energy monitoring and programmable charging windows that can help manage electricity use during off-peak hours. These features do not change the fundamental Level 1 versus Level 2 decision, but they can make a Level 2 installation more convenient to live with day to day.

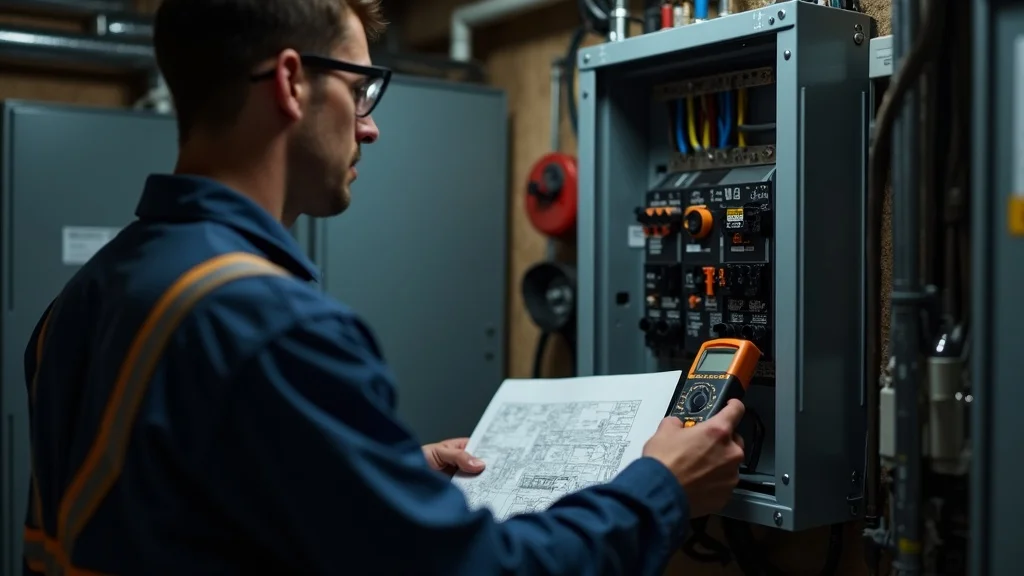

Checking Panel Capacity and Wiring Distance
Once a charger type is chosen, attention turns to the home’s electrical panel and the physical path the wiring will take. Installation planning needs to account for the distance between the panel and the proposed charger location, along with any wiring or conduit required to connect the two safely. A charger mounted close to the panel is generally simpler and faster to wire than one installed at the far end of a detached garage or across a long driveway run.
Panel capacity matters just as much as distance. Many homes built decades ago were wired with less amperage than modern households now demand, especially once a 240V charging circuit enters the picture alongside existing appliances, heating systems and other large electrical loads. An electrician checking capacity is really checking whether the panel has enough spare room to add a dedicated EV circuit without overloading the system.
When a Panel Upgrade or Rewiring Is Needed
A panel upgrade or rewiring becomes necessary when the existing electrical system cannot support a Level 2 charger safely. This is more common in older Etobicoke homes with lower-capacity service, though even newer homes can run short on spare capacity if several high-draw appliances are already in use.
A few signs point toward needing this extra step:
- An older panel rated well below modern standard service levels
- Frequent breaker trips when multiple appliances run at once
- A charger location far from the panel, requiring a long wiring run or additional conduit
- Plans to add a second EV or other major electrical load in the near future
When any of these apply, the electrician handling the assessment will flag it early, since a panel upgrade changes both the project timeline and the overall budget.

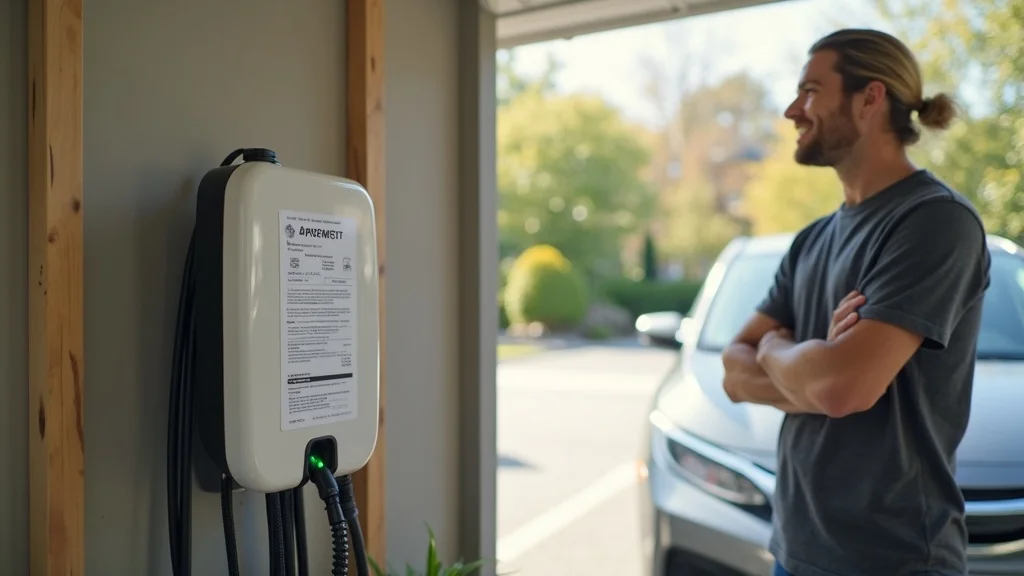

The ESA Notification: Ontario’s Required Permit
Home EV charger installation in Ontario requires a notification of work filed with the Electrical Safety Authority before installation starts, and this notification functions as the required permit for the project. Skipping it is not a shortcut worth taking, since uninspected electrical work can create safety hazards and complicate insurance claims or future home sales. The Electrical Safety Authority treats this step as standard practice for virtually all electrical work completed in Ontario homes, not a special requirement unique to EV chargers.
Once the installation is finished and confirmed compliant, the homeowner should receive a Certificate of Acceptance, which serves as official documentation that the work meets Ontario’s electrical safety code. This certificate matters later too: it can reassure a future buyer or an insurance provider that the charging setup was done properly, with no corners cut.
Who Can File the ESA Notification
Homeowners have the option to complete their own electrical work, but they must still file a notification of work with the Electrical Safety Authority before starting. Most choose instead to work with a Licensed Electrical Contractor holding a valid ECRA/ESA licence, who can file the notification and manage the project from paperwork through to the final inspection. Licensing matters because electrical work carries real safety risks when done incorrectly, from fire hazards to shock risks, and it ensures a baseline of training and accountability.
Equipment also needs to be certified for use in Canada by a nationally recognized certification body, or carry another certification mark the Electrical Safety Authority accepts, per Ontario government guidance on home EV charging. Letting a licensed professional handle the notification and inspection removes the guesswork around which forms are needed and what the inspector will be checking for.
From Assessment to Final Inspection
The path from first phone call to a working charger generally follows a consistent sequence: assessment, choosing a licensed electrical contractor, securing the ESA notification, installation and inspection, then testing. Each stage builds on the last, so skipping ahead rarely saves time and often creates delays further down the line.
- Assessment – An electrician reviews panel capacity, wiring distance and the proposed charger location.
- Choosing a contractor – A licensed electrical contractor is selected to manage permits and perform the work.
- ESA notification – The contractor files the required notification before any installation begins.
- Installation and inspection – Wiring, mounting and circuit work are completed, followed by an inspection to confirm compliance.
- Testing – The charger is tested and activated, confirming it charges the vehicle safely and as expected.
Many installations can be completed in a single day, particularly when the panel has enough spare capacity and the charger location sits close to the panel. Permit processing or any needed electrical upgrades can stretch the overall timeline beyond that single day, so homeowners planning around a specific move-in date or vehicle delivery should build in some buffer time.
Budgeting for Equipment, Wiring and Upgrades
Costs for a home EV charger installation vary based on the charger chosen, the wiring distance involved and whether any electrical upgrades are needed. Installation can involve a dedicated circuit, a panel upgrade, additional wiring or conduit, and ESA permit or inspection fees, all of which stack together into the final number. A straightforward Level 2 installation with an accessible panel and a short wiring run will typically cost far less than one requiring a long trench, finished-wall routing or a full panel upgrade.
A few factors tend to drive the biggest swings in price:
- Charger type and features – A basic Level 2 unit costs less than a smart charger with app controls and energy monitoring
- Wiring distance – Longer runs between the panel and charger location mean more cable, conduit and labour
- Panel condition – Homes needing a service upgrade, such as moving from older lower-amp service to modern 200-amp service, face a larger expense than homes with ample spare capacity already in place
- Load management needs – A panel with limited room may call for a load management device rather than a full service upgrade, which can be a more affordable middle option
- Permit and inspection fees – The ESA notification and inspection add a modest cost on top of equipment and labour
Homeowners budgeting for this project should ask for a written estimate that breaks out equipment, labour, any panel work and permit fees separately, so it is clear exactly what is driving the total.
Safe Charging Starts With the Right Planning
A home EV charger is a long-term piece of household infrastructure rather than a weekend gadget project, and treating it that way from the start pays off. Confirming panel capacity, choosing the right charger level for actual driving habits, and working with a licensed electrical contractor who handles the ESA notification properly all work together to produce a safe, reliable charging setup.
For Etobicoke homeowners ready to move from research to action, a professional assessment remains the clearest way to understand what a specific home will need, and what it will cost, before any wiring begins. For a smooth start, call Crown Electric Ltd for an estimate to confirm the right equipment, wiring plan and permit steps for the home before work begins.
